Description
- Energy-efficient design.
- Data line surge protection.
- Four stage LED status display.
- Audible alarms.
- Transformer-block spaced outlets.

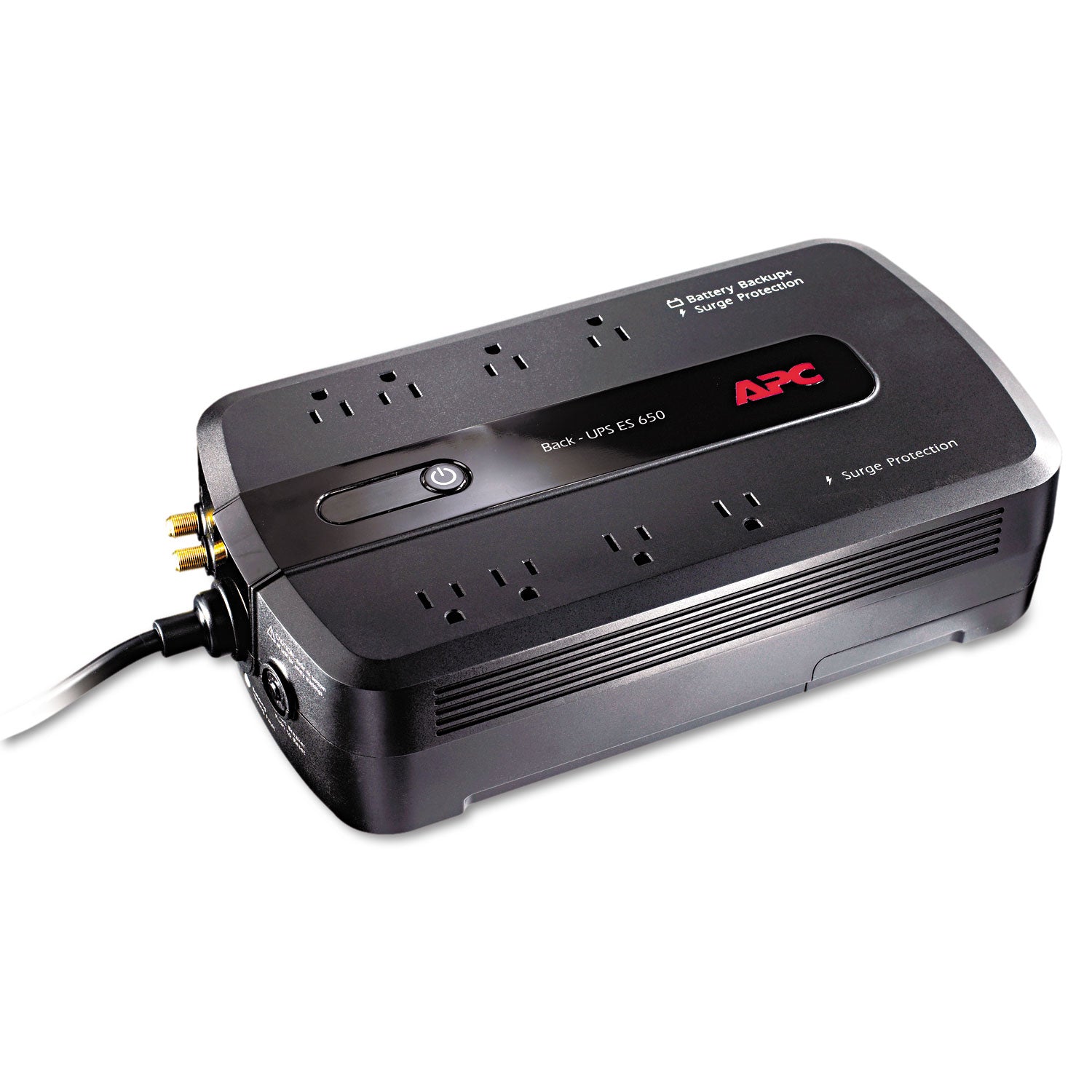

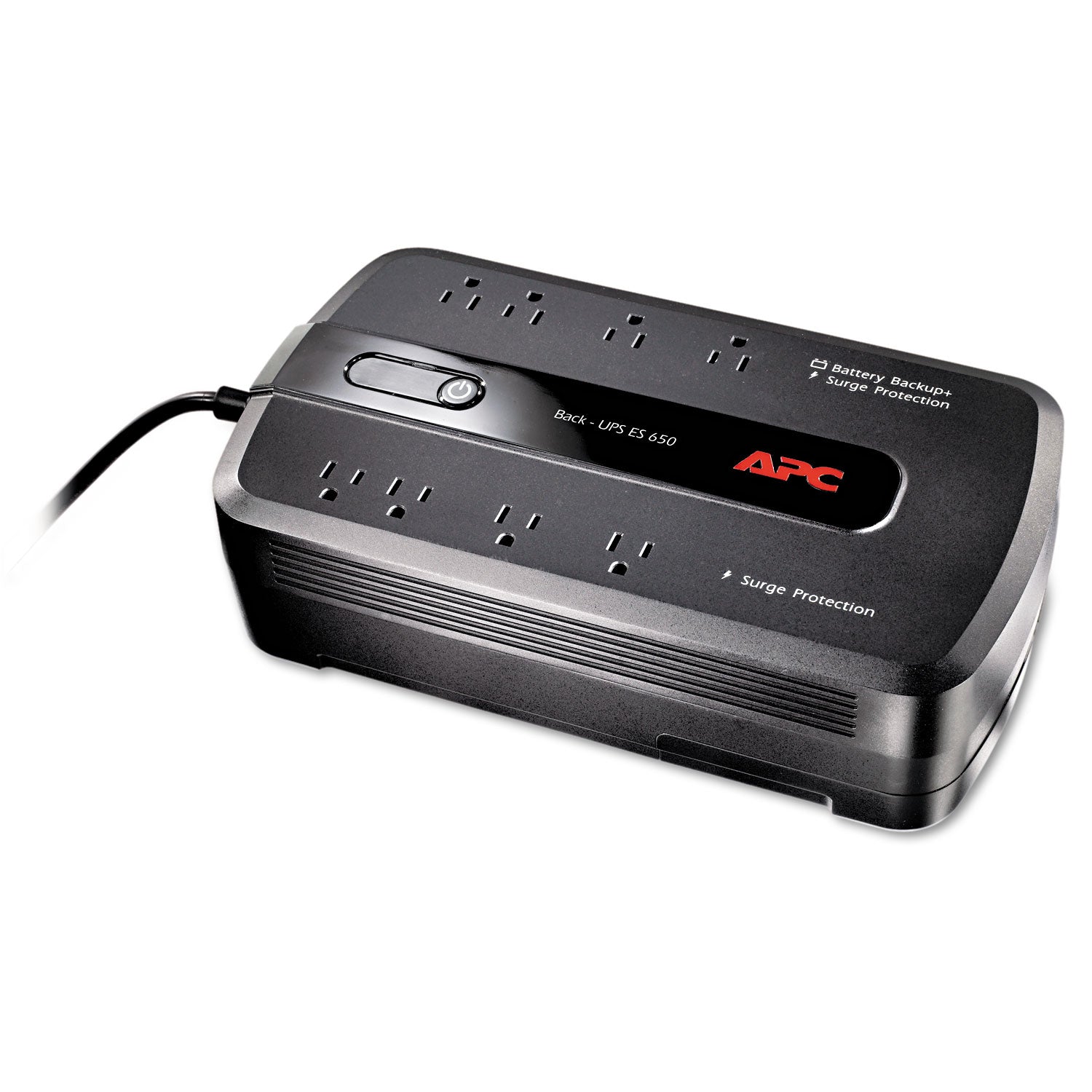

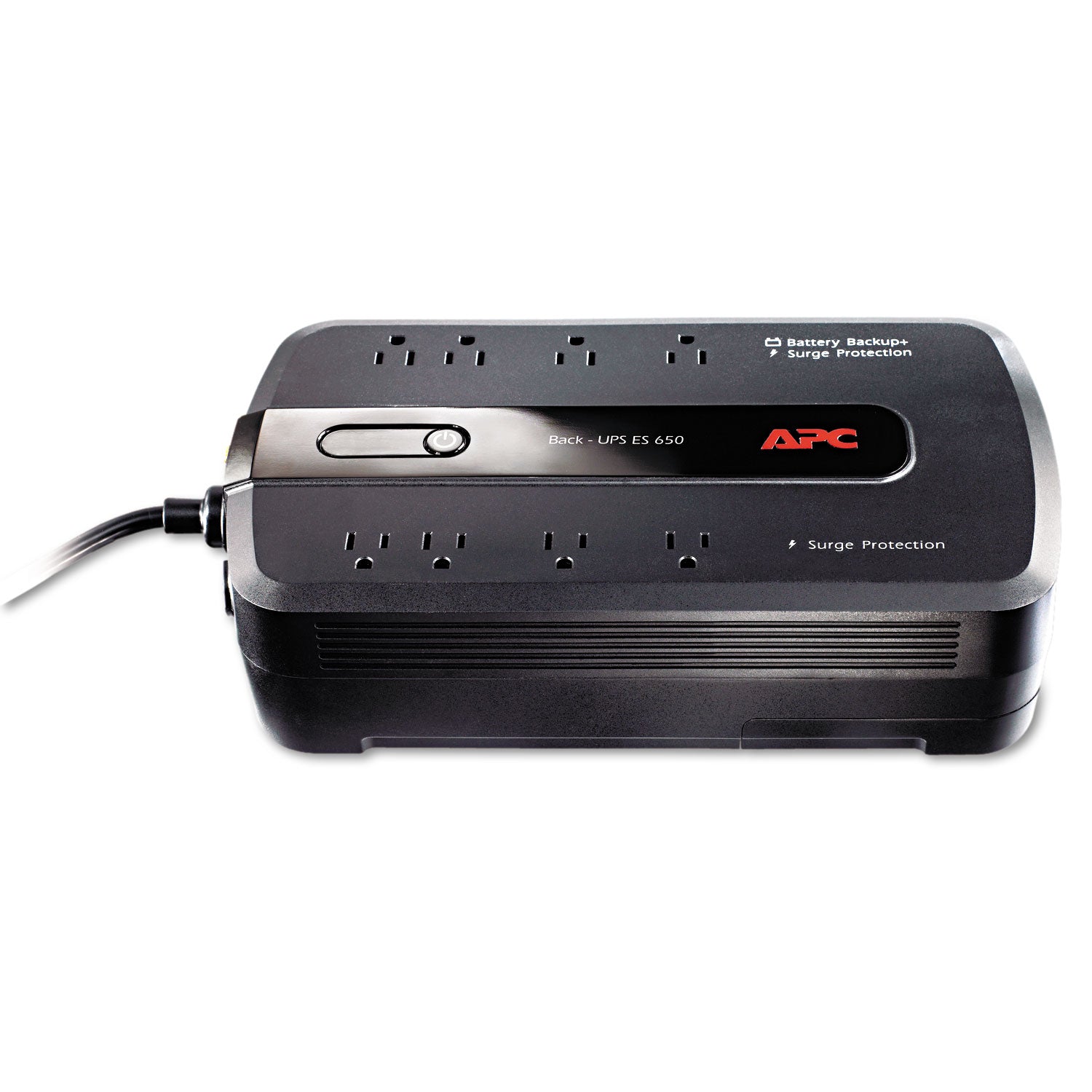

Designed to use less energy during normal operation, this backup system provides enough power for you to work through short and medium length power outages. Data line protection safeguards your equipment from damaging surges and spikes that travel along utility and data lines. Four stage LED status display indicates On Line, On Battery, Replace Battery and Building Wiring Fault conditions. Continuous tone and two different chime alerts notify you of changing utility power and UPS conditions. Wide spaced outlets allow you to protect equipment that uses input transformer blocks without blocking access to other receptacles.
| Protection Type | Cable Modem; DSL; Ethernet; Fax; Modem; Phone; Power |
| System VA | 650 VA |
| Backup Time at Half Load | 13.4 min @ 195 W |
| Lines | 1 |
| Automatic Voltage Regulation (AVR) | Yes |
| Multimedia Protection | Ethernet/Telephone/Modem |
| Battery Recharge Time | 16 h |
| Connected Equipment Guarantee/Warranty | $75,000 Equipment Protection Policy |
| Backup Time at Full Load | 3.8 min @ 390 W |
| Jacks/Ports | RJ11 |

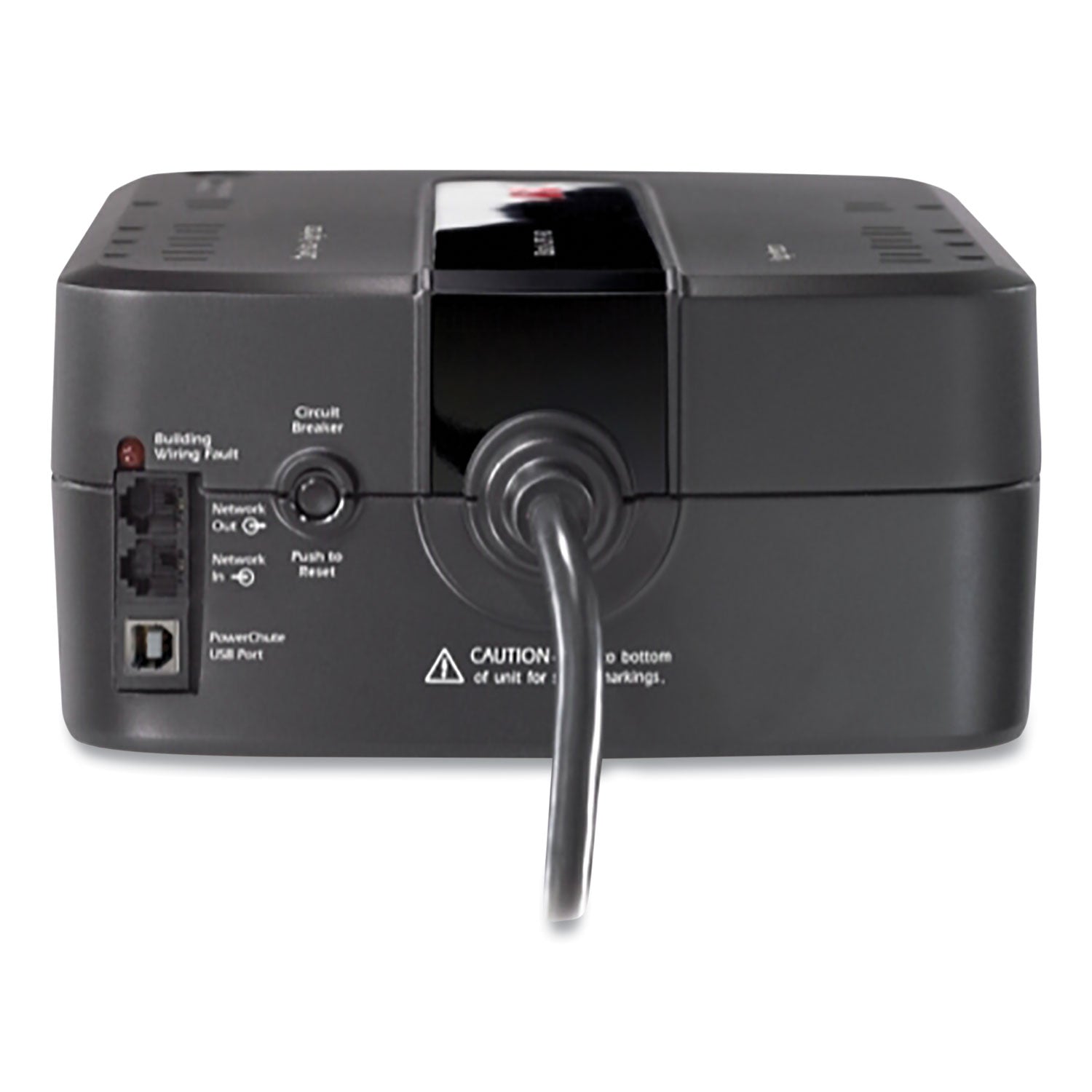

| Connector/Port/Interface | Coaxial; RJ11; RJ45; USB |
| Joules Of Surge Protection | 340 J |
| Number of Outlets | 8 |
| Diagnostics/Alarm/Status Light | Alarm; LED |
| React Time | Instantaneous |
| Cord Length | 6 ft |
| Telephone/Internet Protection | Cable; DSL; Ethernet; Fax; Phone |
| Color(s) | Charcoal |
| Width | 12.6" |
| Height | 3.6" |
| Depth | 7" |
| Backup Systems Alarm(s) | Audible |
| Emergency Power Off (EPO) | No |
| Input Frequency | 60 Hz |
| Model Name/Number | Back-UPS ES 650 |
| Number of Outlets/Type | 4 UPS/Surge; 4 Surge Only |
| Weight | 14.3 lbs |
| Backup Run Time | 13 min |
| Product Biodegradability in Days | 0 |
| Compliance Standards | Conforms to UL 1449 Standards; Conforms to UL 1778 Standards; FCC Class B Certified; FCC Part 68 Certified; TUV SUD Certified |
| Pre-Consumer Recycled Content Percent | 0% |
| Post-Consumer Recycled Content Percent | 0% |
| Total Recycled Content Percent | 0% |
| Disclaimer Statement | Run Time based on a load of 195 W. |
| Special Features | Includes PowerChute® Auto-Shutdown Software |
